How Do You Set Up a Video Wall Digital Signage Display?
To set up a video wall digital signage display, you combine several screens into one connected canvas, drive that canvas with a media player or controller, and manage the content through digital signage software. Walk into a busy airport, a flagship store, or a stadium concourse and that is the effect you see: a wall of screens acting as one giant picture rather than a pile of separate monitors. It comes down to the right panels, a player or controller that can split a single canvas across many tiles, and software that treats the whole grid as one surface. According to IMARC Group, the global video wall market reached USD 25.4 billion in 2025 and is projected to hit USD 111.7 billion by 2034, so a lot of teams are trying to get this exact setup right.
The tricky part is that most guides jump straight to bezels and brightness and never explain the actual workflow. This walkthrough does the opposite. You will see what to buy first, which software choices matter, the real step by step layout process, the two hardware paths that power a wall, and how to keep it calibrated once it is live. By the end you will know how to set up a video wall digital signage display without guessing.
What Do You Need for Video Wall Digital Signage Setup?
A solid video wall digital signage setup starts with three physical ingredients: the panels, the brains that drive them, and the frame that holds it all square. Good digital signage software can only make the pixels dance once the underlying hardware is chosen and mounted with the grid in mind.
Sizing matters more than people expect. Per CrownTV, a 2×2 wall of 55 inch LCD tiles creates roughly a 110 inch canvas, and a 3×3 pushes that to about a 165 inch canvas, so a small change in grid size dramatically shifts both the visual impact and the wall space you need to reserve.
How to set up a video wall digital signage panels mounted in a 2×2 grid
Video Wall Display Panels
Pick displays built for tiling, not consumer TVs. Video wall panels use thin bezels so the seams between tiles almost disappear, and they are rated for long duty cycles so they can run all day without cooking themselves. Match the panel count to the room: a 2×2 is plenty for a lobby, while a 3×3 or larger reads as a true spectacle in a large atrium.

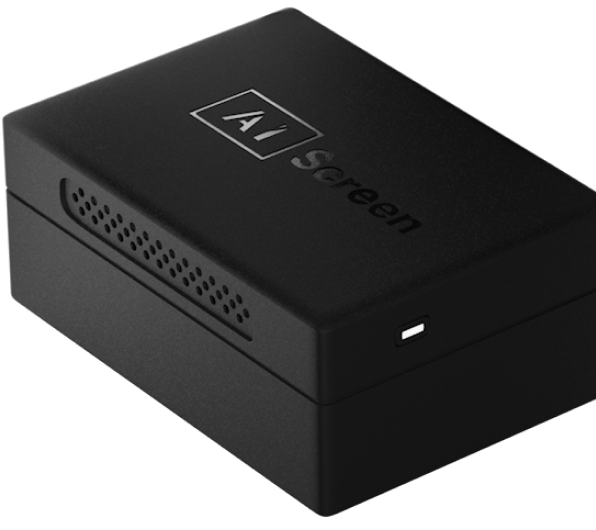

Digital Signage Media Players
Every wall needs something to generate and slice the image. That is either a media player driving each screen, a single player feeding a video wall controller, or a Windows machine running an extended desktop. Which one fits depends on whether you want one video stretched across the wall or many independent zones.

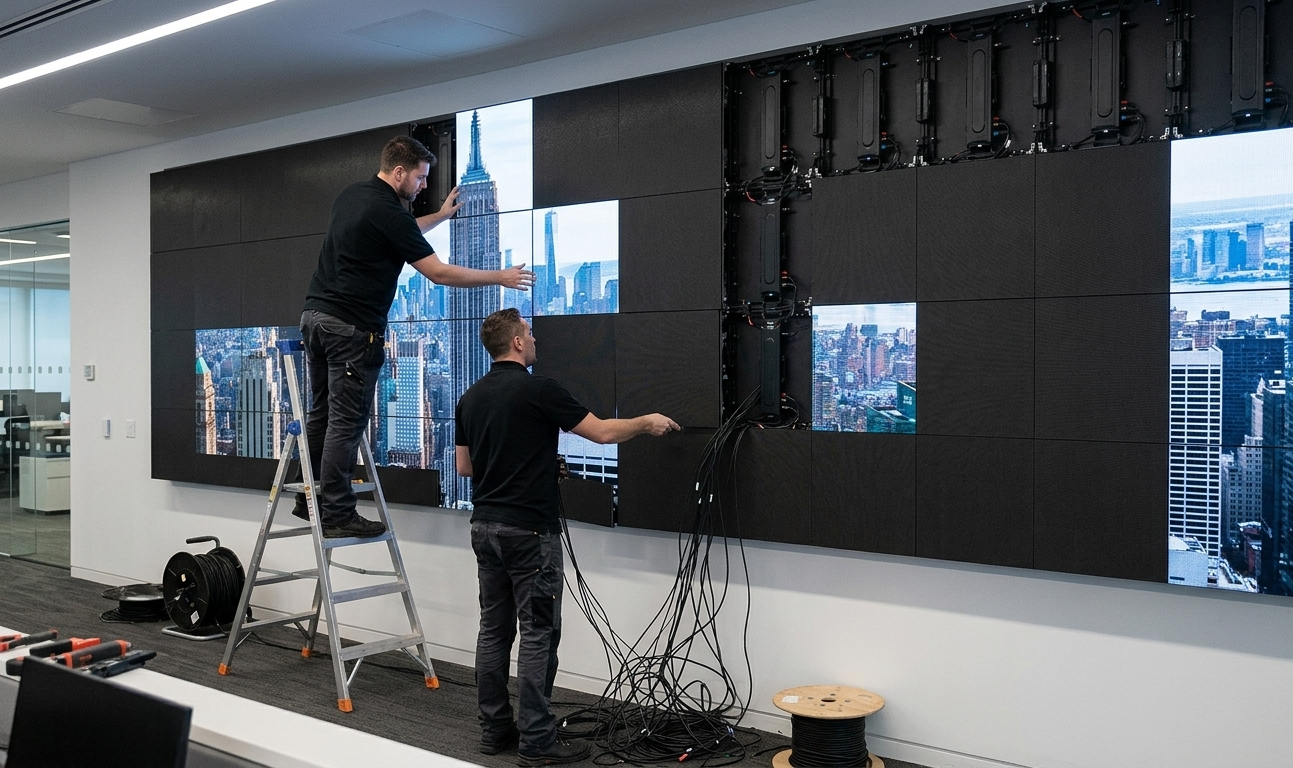

Video Wall Mounting Hardware
The frame is not an afterthought. Pop out mounts and micro adjustable brackets let you nudge each tile so the grid lines up perfectly, which is the difference between a clean canvas and a crooked mess. Plan the layout on paper first, mark stud lines, and leave rear access for cabling and panel swaps.
Which Digital Signage Software Sets Up a Video Wall Outdoors?
The digital signage software that sets up a video wall outdoors is a cloud platform that handles tiling, scheduling, and remote control across weather rated displays. Software is the part that decides whether your wall is a headache or a habit, so for an outdoor install you also want panels rated for sun, heat, and moisture. If you are still comparing vendors, this roundup of the best digital signage software companies outdoor is a sensible place to shortlist before you commit budget to panels and mounts.
There is real momentum behind this category. Grand View Research reports that video walls were the largest digital signage segment, taking over 25.5 percent share in 2025, which tells you the tooling around walls has matured fast and you are not stuck stitching together consumer parts.
Cloud based video wall digital signage software dashboard managing multiple screens
Cloud Based Video Wall Software

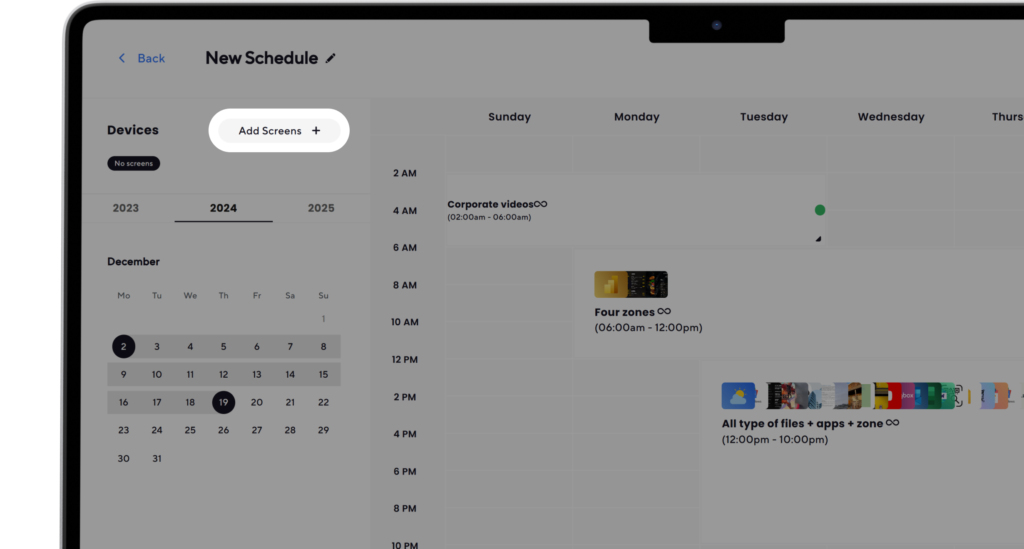

A cloud platform like AIScreen lets you build the wall once and push content to it from anywhere. Central multi screen management means you group, tag, and control every panel from one dashboard. Advanced scheduling programs content by time, day, or week with priority takeovers when something urgent needs the canvas.
Outdoor Rated Signage Displays
Outdoor and semi outdoor spots demand high brightness panels and weather sealed enclosures so the picture stays readable in direct light. Pair those with software that supports remote reboots and health checks, because resetting a frozen tile from a ladder in the rain is nobody’s idea of a good afternoon.
How Do You Set Up Video Wall Digital Signage Layouts?
You set up video wall digital signage layouts in AIScreen by building a tile grid, configuring each tile, then saving and assigning the wall to your screens. The interface stays visual throughout, so you build the canvas you actually see rather than editing config files.
How to set up a video wall digital signage grid in the AIScreen editor
Create the Video Wall Grid
Open the Video Wall section in the left sidebar, then click Create video wall.
Build the layout by adding tiles, making sure each tile touches at least one other tile by an edge. A 2×2 wall is four tiles, and tiles auto number from the top left across to the right.Use the top toolbar to set grid size, for example 2×2, and pick an orientation of landscape or portrait to match your panels.
Video Wall Tile Resolution
Select a tile and choose a resolution from the dropdown, or use Create Custom Resolution when your panels are non standard.Set the total wall resolution in the toolbar, for example 3840×2160 for a 4K canvas, so the platform knows how to distribute pixels across the grid.
Digital Signage Content Zones
Click Add the content on a tile to attach a playlist, and use Change content whenever you want to swap what is playing there.Preview from the toolbar to check how the content flows across the seams before you commit.
Video Wall Screen Grouping
Use Screen Grouping to merge several tiles into one region with Group and Ungroup, which is how you make one video span multiple panels while others run their own content.Add Slides to sequence multiple scenes, giving each a custom duration, for example Slide 1 at 30 seconds and Slide 2 at 60 seconds. Rename the wall, hit Preview one last time, then Save and assign the saved video wall to your screens.
Which Hardware Path Powers Video Wall Digital Signage?
Two hardware paths power video wall digital signage: a Windows PC in Extended Desktop mode, or an AIScreen player paired with a video wall controller. Picking the wrong one is the most expensive mistake in a video wall project, so the right answer hinges on whether you want many independent videos or one image stretched edge to edge.
Two hardware paths to set up a video wall digital signage display
Windows Video Wall Setup
The Windows path uses a Windows PC driving multiple displays in Extended Desktop mode. It scales from a modest 2×2 up to a 10×10 grid, delivers true 4K per screen, and can run multiple independent videos at once. This is the setup for pro and enterprise installs where different zones need different content playing at the same time.
Video Wall Controller Setup
The simpler path pairs an AIScreen Stick or player with a video wall controller such as J Tech and your displays. The player outputs one signal, and the controller splits and stretches it across the wall. It is cost effective and ideal for a 2×2 or 2×3 showing a single video across the whole canvas. One caveat: a controller distributes the signal, it does not add resolution or processing power, so when you need several independent high res videos, use the Windows path instead.
How Do You Design Video Wall Digital Signage Content?
You design video wall digital signage content by choosing between a single uncut canvas and zoned regions, then filling each with playlists, apps, and templates. The same grid can feel like a cinema screen or a cluttered bulletin board depending on how you treat the canvas. You can lean on AIScreen’s ready made digital signage solutions and the Canvas editor with its 1500 plus templates to skip the blank page problem entirely.
Interest in interactive walls is climbing too. Global Growth Insights valued the interactive video wall market at USD 19.74 billion in 2025 with a forecast of USD 55.45 billion by 2035, so designing for touch and engagement is fast becoming table stakes rather than a novelty.
Designing zoned content on a video wall digital signage canvas
Single Canvas Signage Layouts
A single canvas layout treats the entire wall as one uncut image, which is what you want for a hero brand moment or a full bleed video that stops people in their tracks. Group the tiles into one region, feed it one high resolution asset, and let the scale carry the message.
Zoned Digital Signage Content
Split screen zones let each tile run its own content, so one region can show a live Weather app, another a Power BI dashboard, and a third an Instagram Social Wall or Google Reviews feed. Apps like Canva, YouTube, and Weather drop straight into zones, which turns a static wall into a live information surface without custom development.
How Do You Maintain Video Wall Digital Signage Setups?
You maintain video wall digital signage setups with a steady rhythm of color calibration, bezel checks, and remote hardware management. Walls drift over time as panels age at different rates and content pipelines occasionally hiccup, so that rhythm keeps the canvas looking intentional months down the road. Most issues fall into two buckets: how the picture looks and how the hardware behaves.
Demand is not slowing, which means these walls tend to stay in service for years. Fortune Business Insights projects the digital signage market to grow from about USD 33.6 billion in 2026 to USD 58.4 billion by 2033, so treating upkeep as a routine rather than a fire drill pays off over a long lifespan.
Calibrating color and bezels on a video wall digital signage display
Video Wall Color Calibration
Over months, individual panels can shift in color temperature and brightness, and mismatched tiles ruin the single surface illusion. Schedule periodic color calibration so every tile reads the same, and account for bezel width so a face or headline never lands awkwardly across a seam.
Remote Digital Signage Management
When a tile freezes or a player needs a nudge, you do not want a truck roll. Remote Hardware Management on the Enterprise tier lets you reboot and manage devices from the dashboard, so you can clear a stuck screen from your desk. Pair that with content sync checks so every tile advances in lockstep.
Choosing the Right Advertising Screens for Your Video Wall
Your video wall setup and all its calibration still ride on the advertising screens you hang. If the wall doubles as a revenue surface, the panels need to be bright, durable, and sized for the room. Browsing the top digital signage advertising screens for sale is a practical way to match display specs to the wall you just designed, so the physical layer lives up to the canvas you built in software.
Ready to Set Up Video Wall Digital Signage?
Setting up a video wall comes down to a repeatable sequence: choose tiling ready panels, decide between the Windows path and a controller plus player, build the grid and zones in software, then keep it calibrated and remotely managed once it goes live. Nail those and a wall stops being an intimidating AV project and becomes just another screen you control from a browser tab.
AIScreen brings that whole workflow into one place, from the visual video wall builder and 1500 plus Canvas templates to central multi screen management and priority scheduling. Start your 14 day free trial, and since your first screen is free, you can prototype the layout before a single panel goes on the wall. Build the grid, drop in your content, and watch how set up a video wall digital signage becomes a task you finish in an afternoon.
FAQs
Can you set up a video wall digital signage system with software alone?
Yes, you can set up a video wall digital signage system with software alone when each panel already has a player and the platform handles the tiling, grouping, and scheduling. The software defines the grid and pushes content, but you still need panels, a player or controller, and mounts as the physical layer underneath it.
Do you need a special controller to set up a video wall digital signage display?
No, you do not always need a special controller to set up a video wall digital signage display. A Windows PC in Extended Desktop mode can drive the grid on its own, while a controller plus player path is a simpler option when you only want one video stretched across a 2×2 or 2×3 wall.
Is a 2×2 grid enough to set up a video wall digital signage canvas?
Yes, a 2×2 grid is enough to set up a video wall digital signage canvas for most lobbies and storefronts, since four 55 inch tiles create roughly a 110 inch surface. Larger rooms usually justify a 3×3 or bigger grid for the extra visual impact and readable detail.
Can you set up a video wall digital signage display outdoors?
Yes, you can set up a video wall digital signage display outdoors when you use high brightness, weather rated panels and cloud software with remote reboot and scheduling. Outdoor readability depends on the display specs, so pair sun rated glass with a platform that lets you manage the wall without visiting the site.
Does AIScreen let you manage a video wall digital signage layout remotely?
Yes, AIScreen lets you manage a video wall digital signage layout remotely through central multi screen management and, on the Enterprise tier, Remote Hardware Management for rebooting and controlling devices. You can update content, adjust scheduling, and clear a frozen tile from the dashboard rather than on site.
Should you use the Windows path to set up a video wall digital signage with multiple videos?
Yes, you should use the Windows path to set up a video wall digital signage system with multiple independent videos, because Extended Desktop mode supports true 4K per screen and separate content per display. A controller only splits one signal, so it cannot deliver several high resolution videos at once.
